Telescopic Excavator Extension Jib – 8-25 tonne excavator

This is a 3 stage, telescopic extension jib is an incredibly versatile attachment, enabling even greater reach capabilities for your excavator. Ideally suited for a range of applications on farms, construction sites or commercial yards.

The triple stage design means this is compact jib is ideal for ease of transport between jobs, taking up less floor space on trailers or truck beds.

It features a 7 position manually extendable boom, that can be easily slid and locked into position by just one person.

Full CE certification provided.

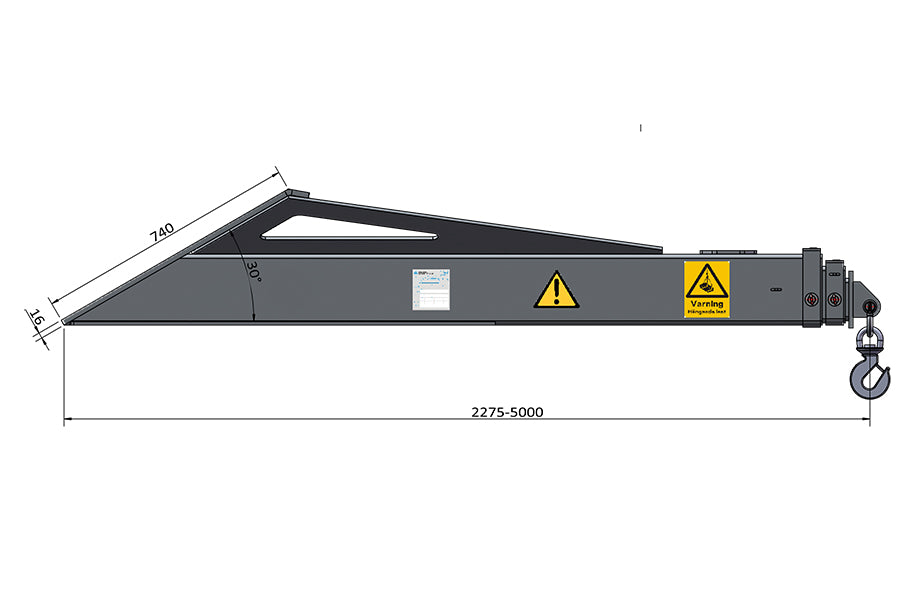

Minimum extension: 2.28m

Full extension: 5m

SWL:

• 3000kg (at 2275mm extension)
• 2700kg (at 2735mm extension)
• 2400kg (at 3190mm extension)
• 1600kg (at 3605mm extension)
• 700kg (at 4130mm extension)
• 550kg (at 4585mm extension)
• 400kg (at 5000mm extension)

Weight: 285kg

A standard 2 pin excavator linkage is supplied according to the machines requirements. Other specialist quick hitch requirements can be accommodated on request for an additional charge.
